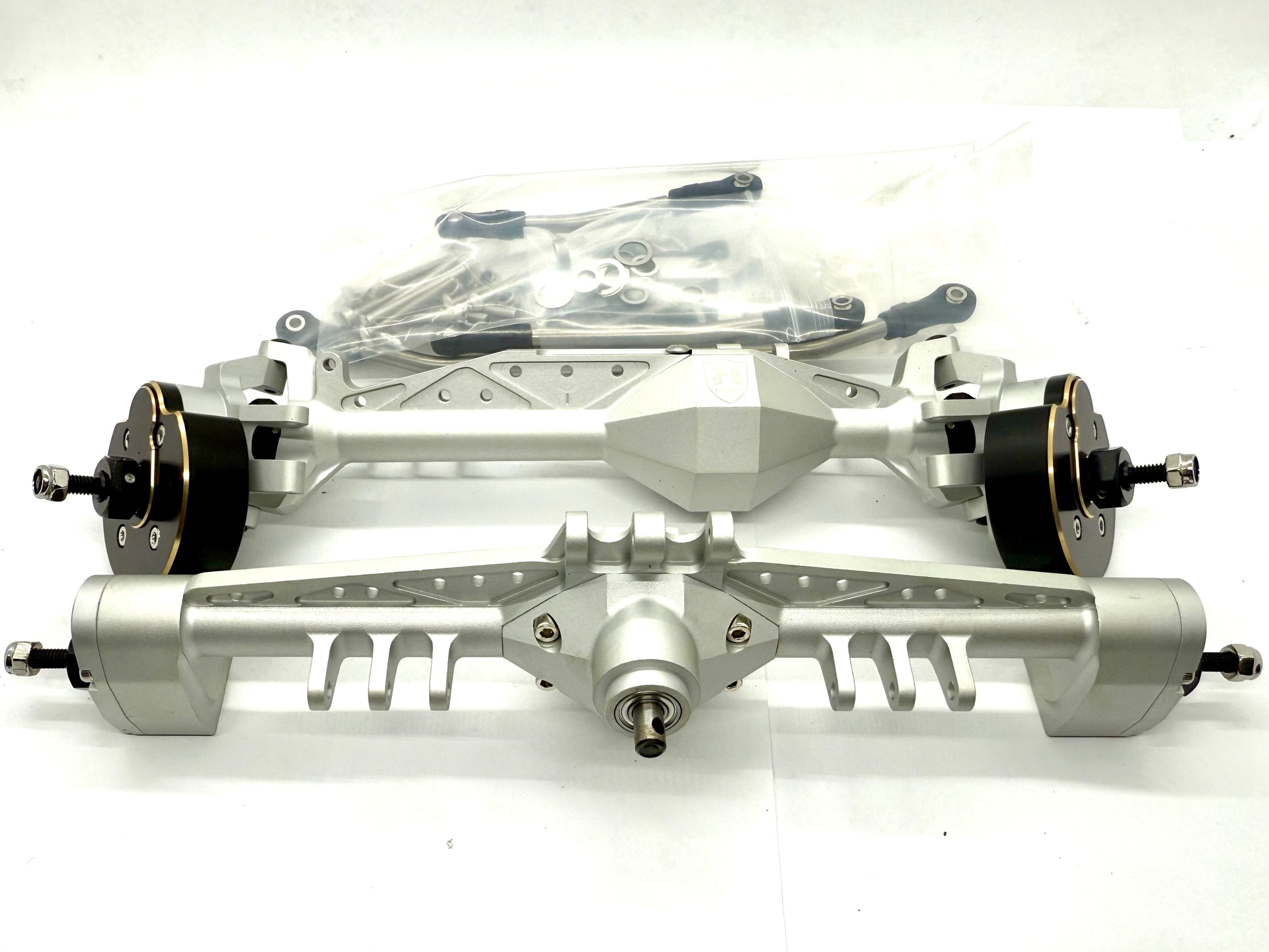

MEUS CHEATCODE COMPLETE AXLE SET SILVER

READ THIS! These axles are a narrower variation of the popular MEUS ISO KINETIC Capra Axles. There are differences, the Front axle has a HEX to HEX width of 223mm, Stock Capra is 228. These REAR axles have  218mm HEX TO HEX measurement so yes the front is WIDER than the rear axles by 5mm. As compared to stock width axles, the front is 5mm narrower and the rear is 10mm narrower.

I worked on these and added features. Rear Axle Skid here https://exocagedrc.com/products/drag-skid-for-meus-rear-capra-axle-only?_pos=1&_sid=1cccff7cd&_ss=r

The FRONT axle has 5 degrees more castor than the MEUS ISO Capra axles did, this allows a higher pinion and still have good castor, or you can lay it down and have much more castor than before.

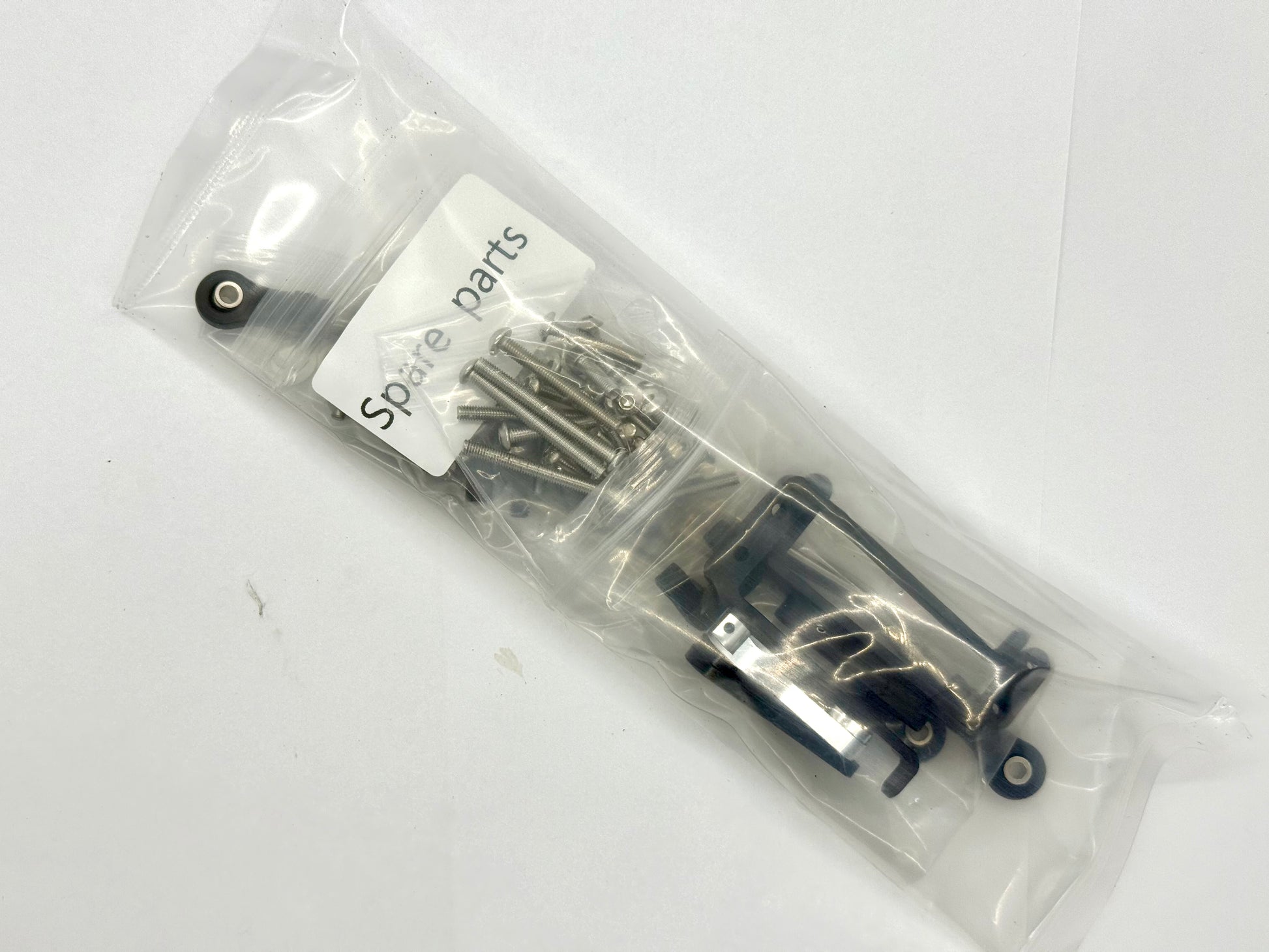

There is a bag of bolts and shims, the thick shims are used between the driveshaft and outer bearing, depending on the driveshaft you are using choose the correct one to eliminate the pinion from sliding in or out. don't bind it, just stop the in/out play as best you can for a smooth drive both on and off power.

The Axle tube has a recess for the servo wires as well as I moved the servo back about 1mm to give even more room for the servo wires with the servo behind the axle.

The axles come with 8-30 gears and you can fit axial ar45 gears in them but you'll need the spool to fit the axial gears as well.
