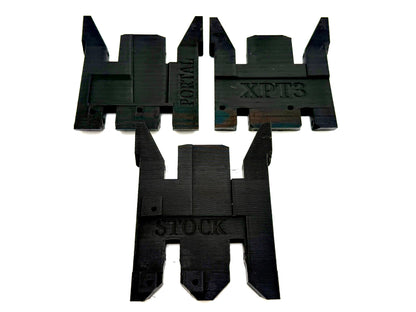

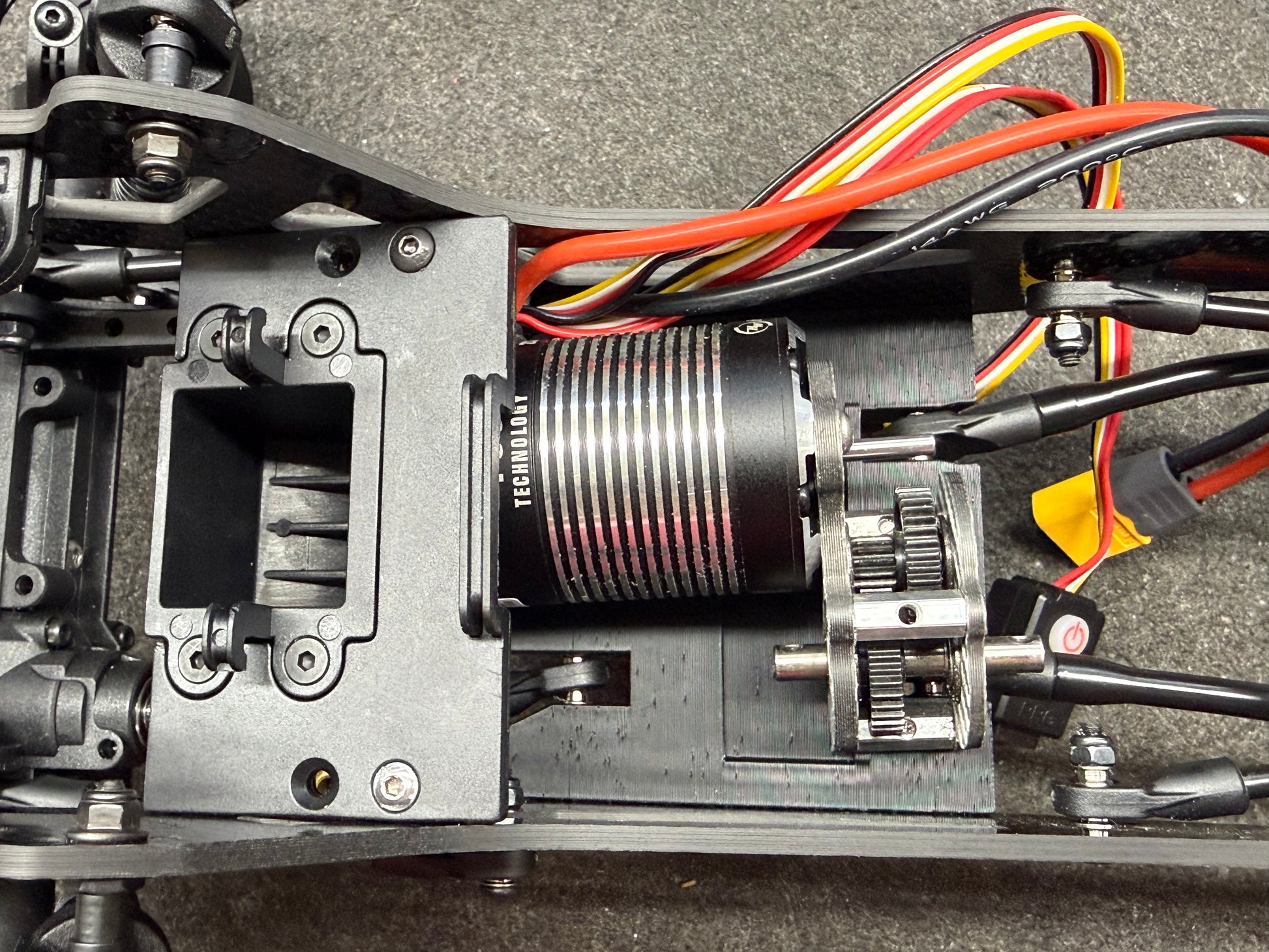

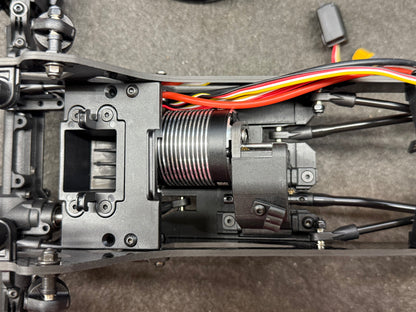

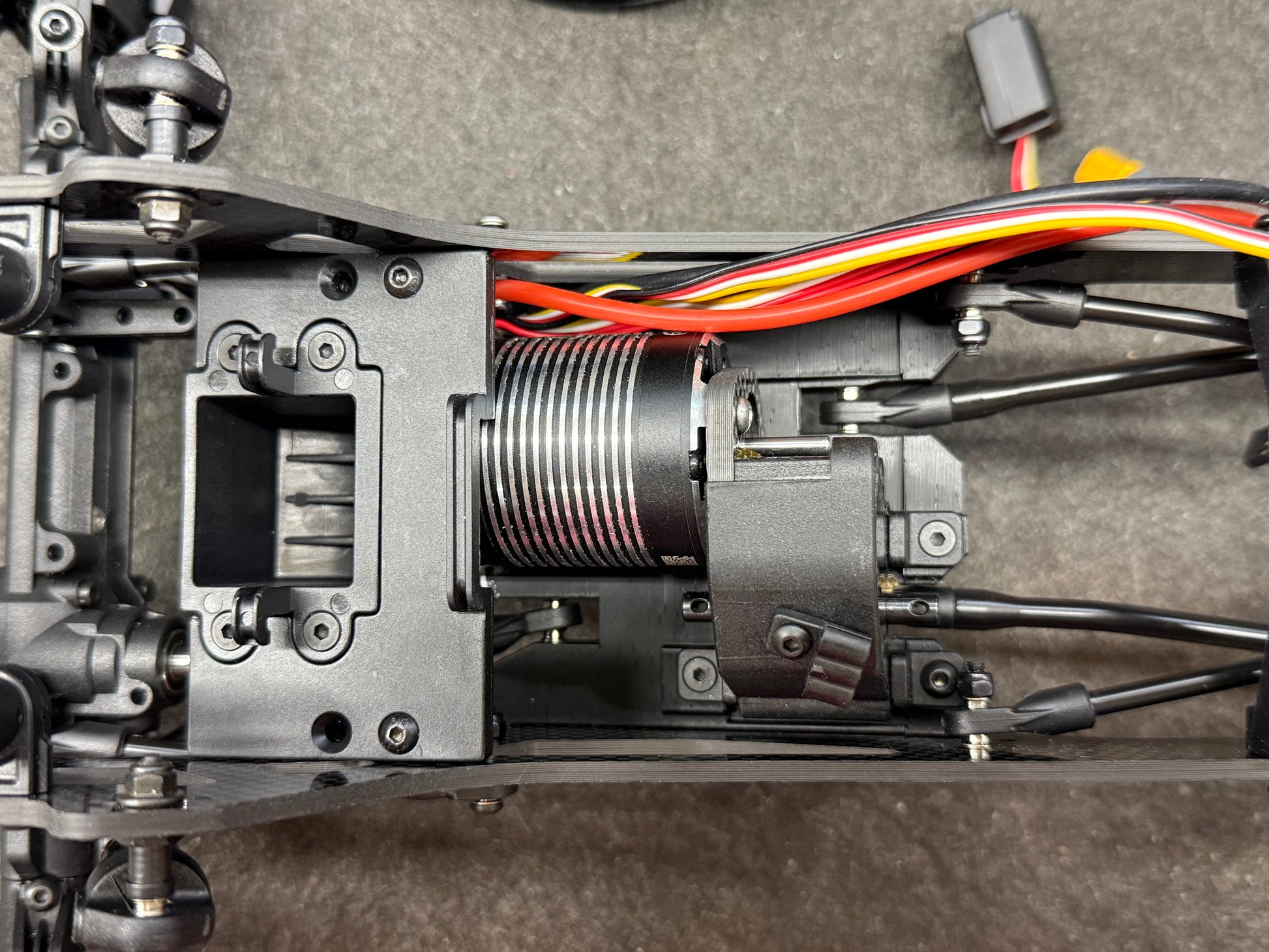

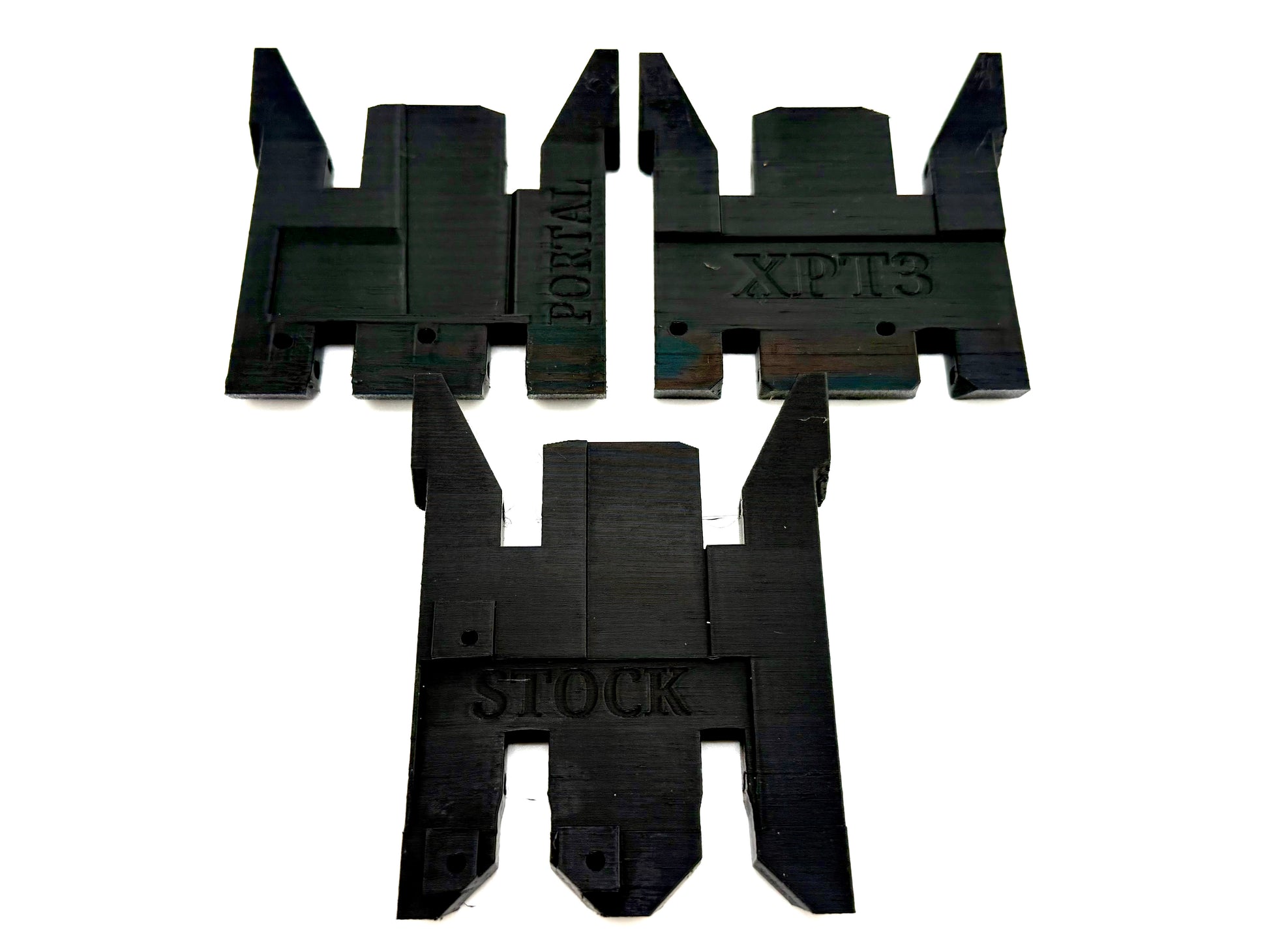

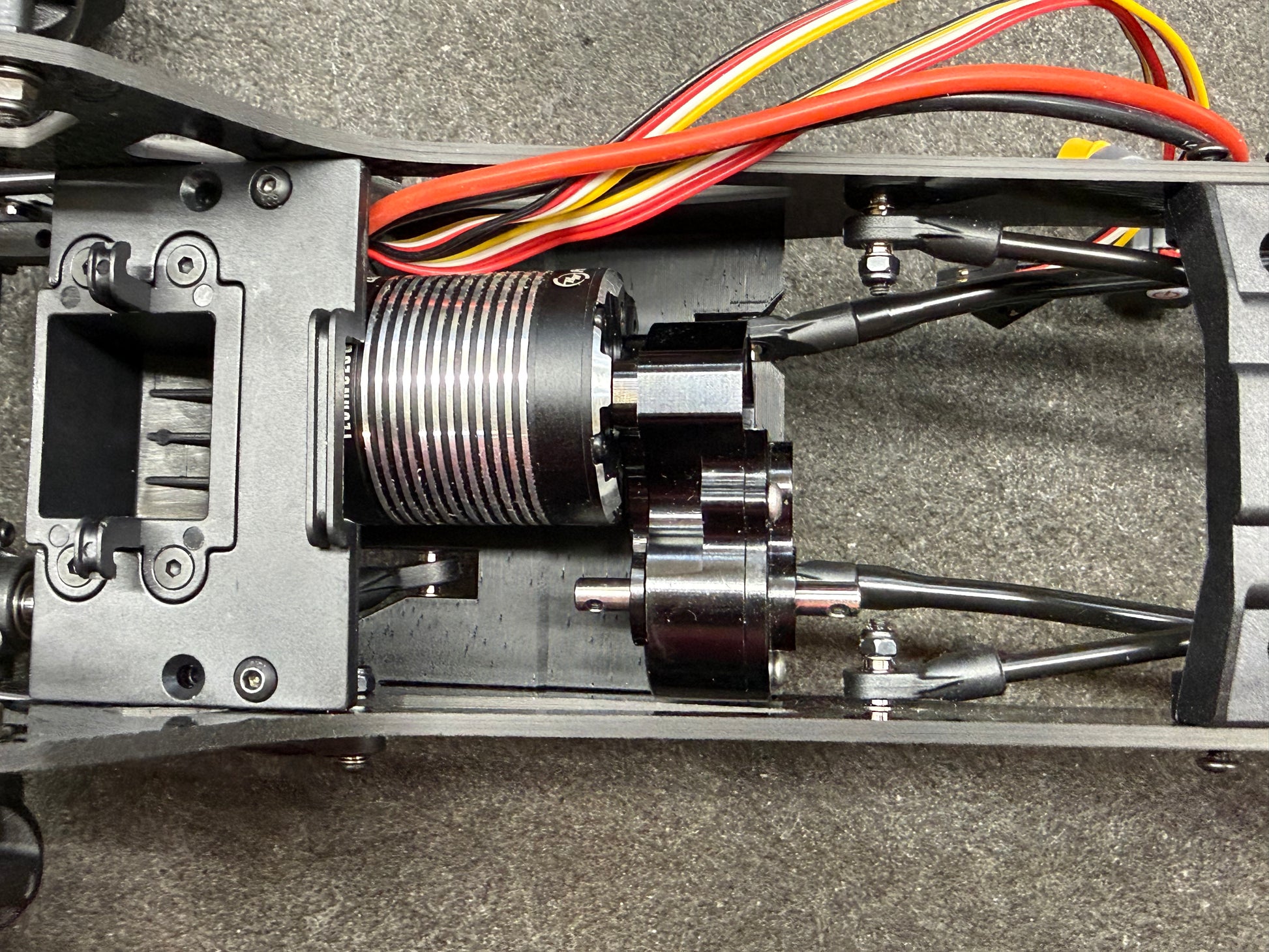

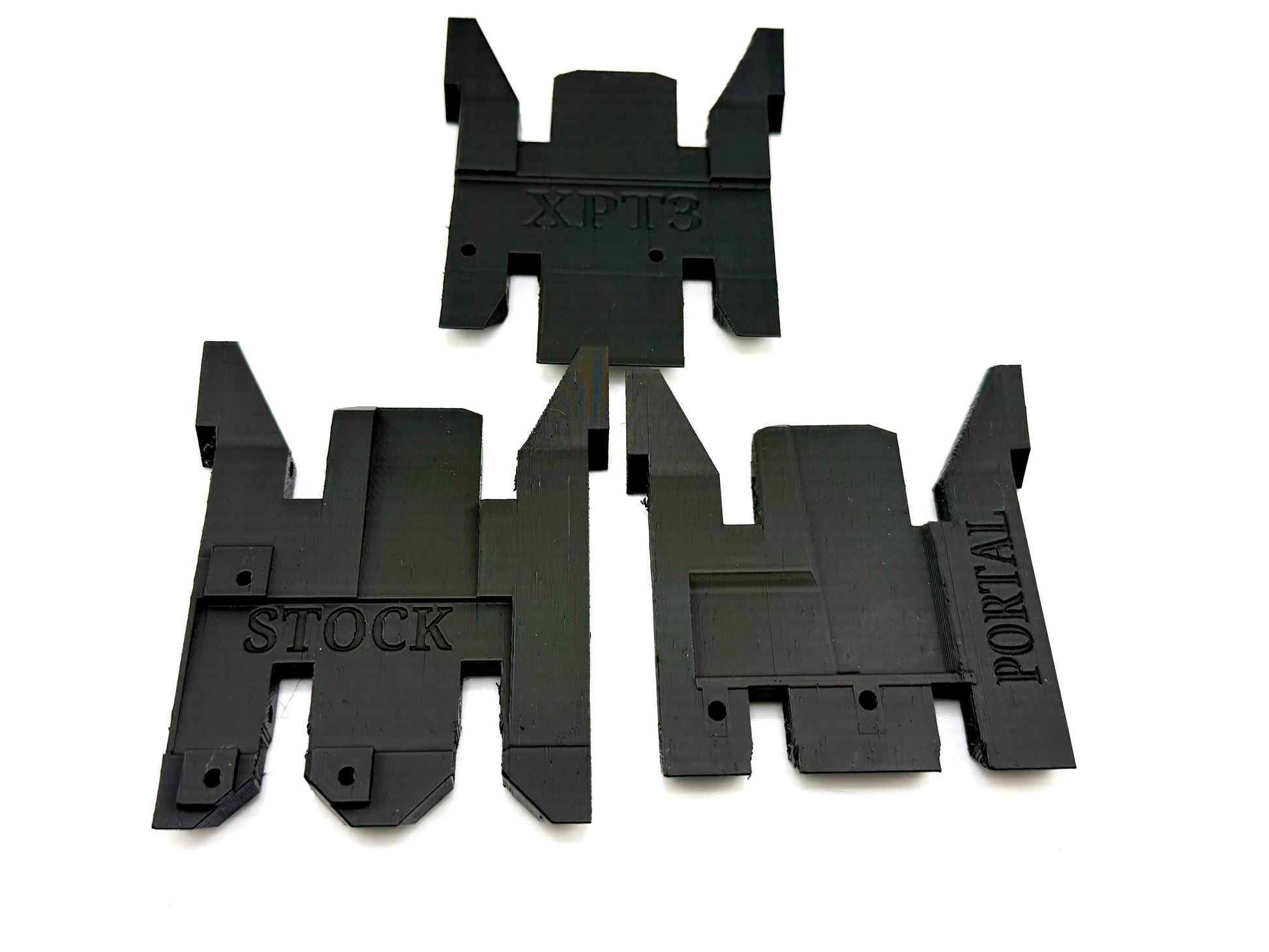

These are skids to fit a Fusion Elite into the Redcat Vertex-10 and still keep the 450mah Battery Drop box. 3 versions: Stock Transmission, Dlux Portal, and Reefs XPT3
Note: you WILL NEED A DRIVESHAFT FOR THE FRONT due to the new rearward position of the Transmission, the Pin to Pin measurements are below. This is with suspension in stock location fully compressed. On the Wide, with the longer wheelbase the stock rear shaft will barely work but the splines in the driveshaft tube do not extend all the way in, on the shorter narrow version most likely it wont work

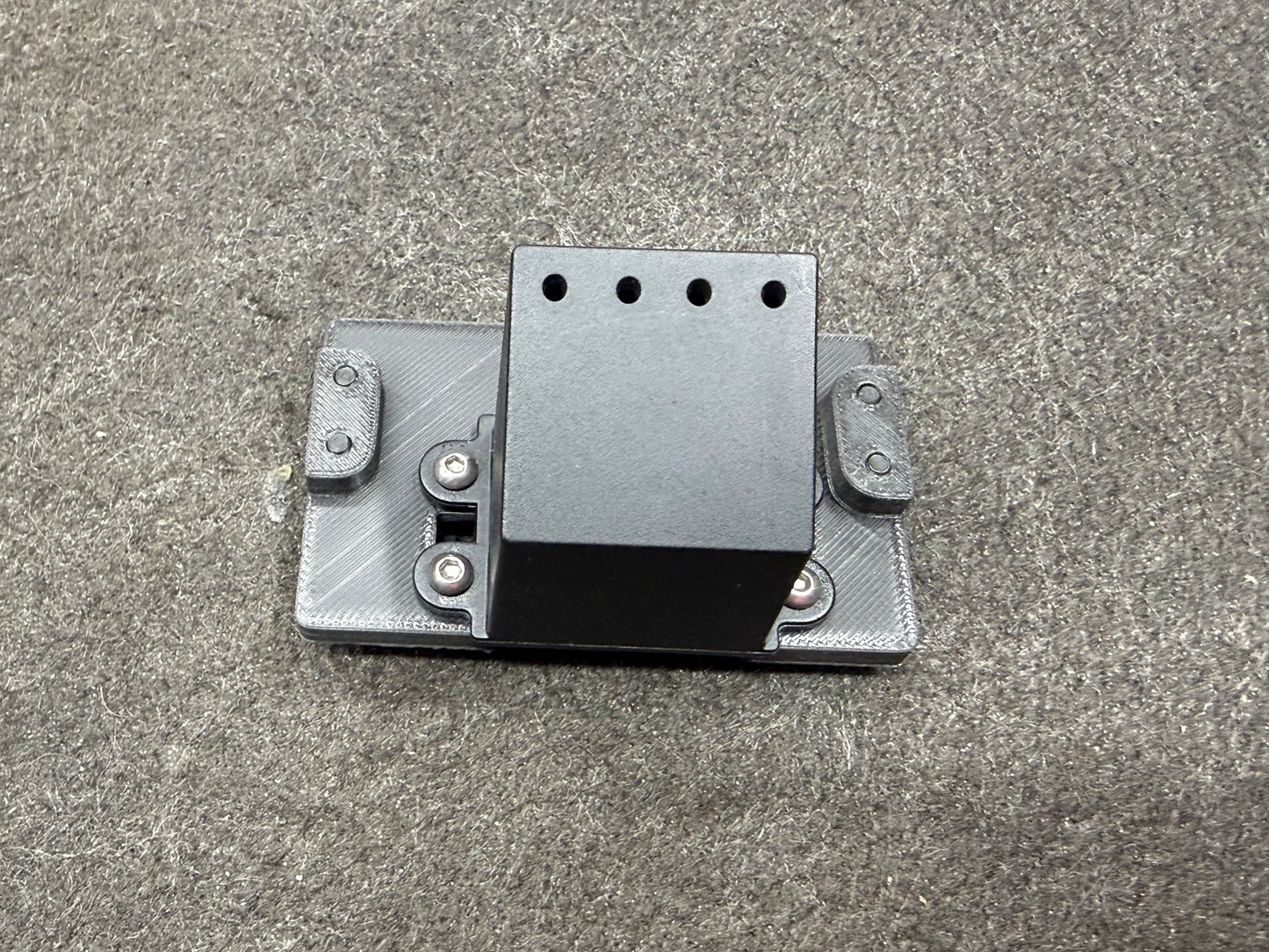

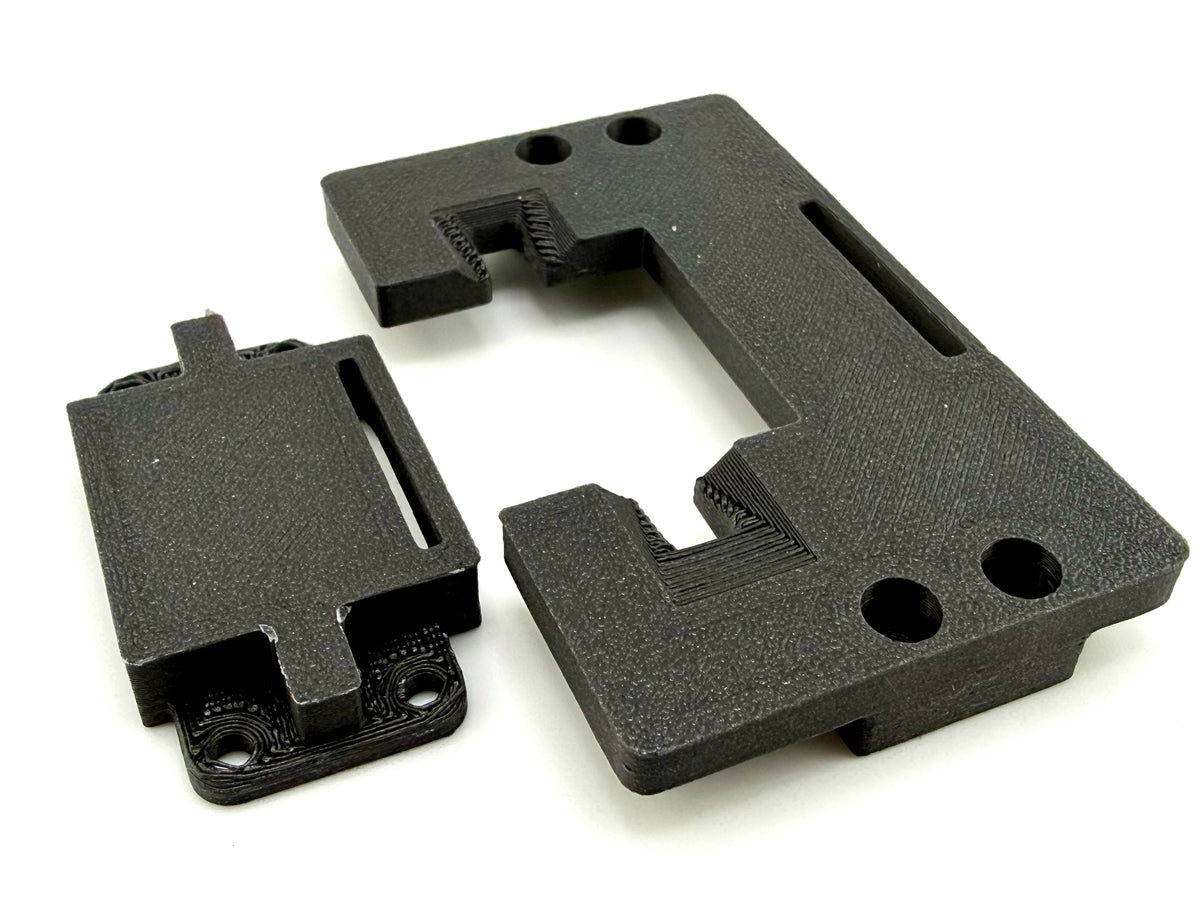

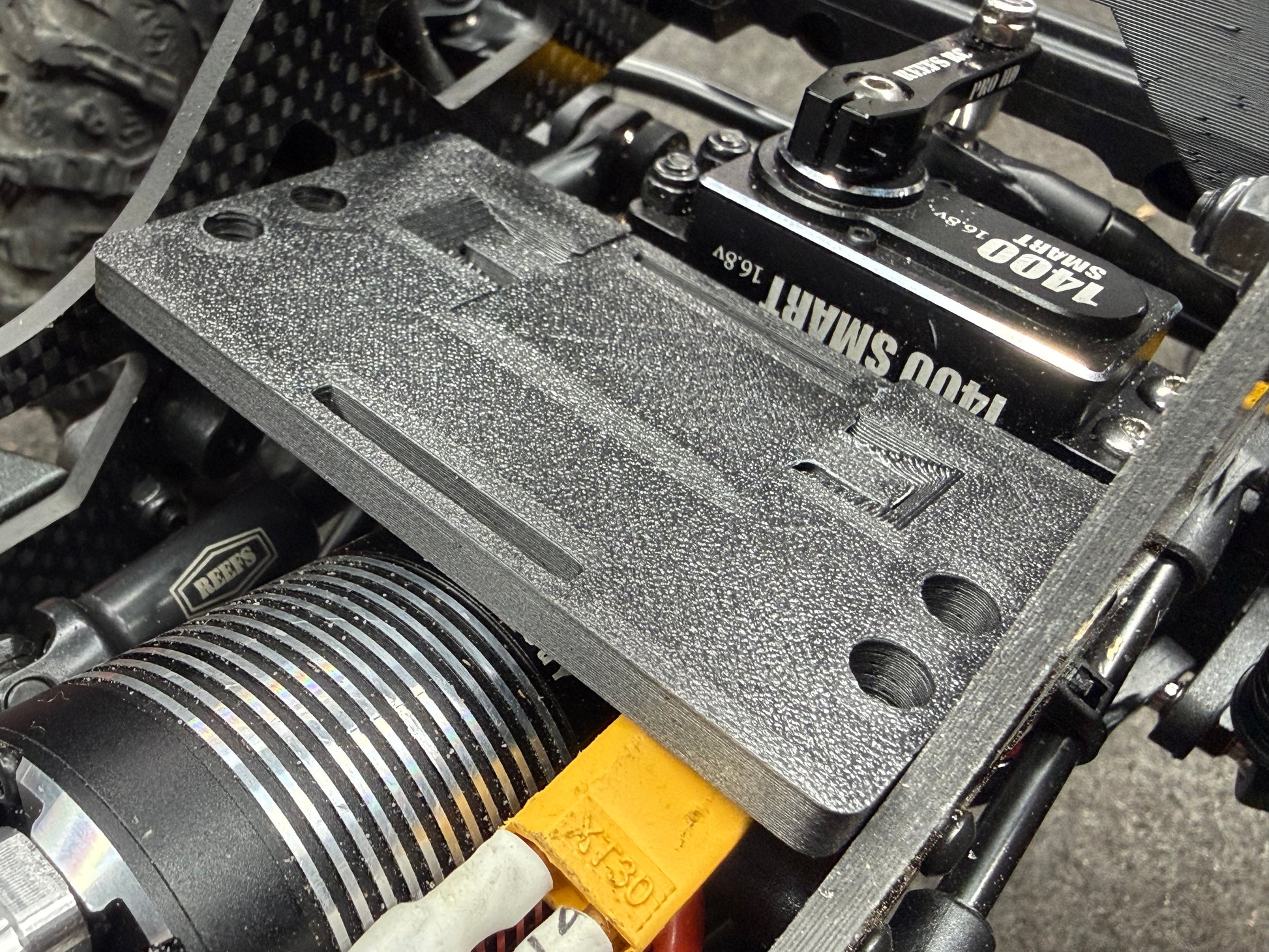

You will get the skid and the battery mount which will still use the 450 battery box.
6mm bolts (4)
Any odd transmission bolts are your responsibility

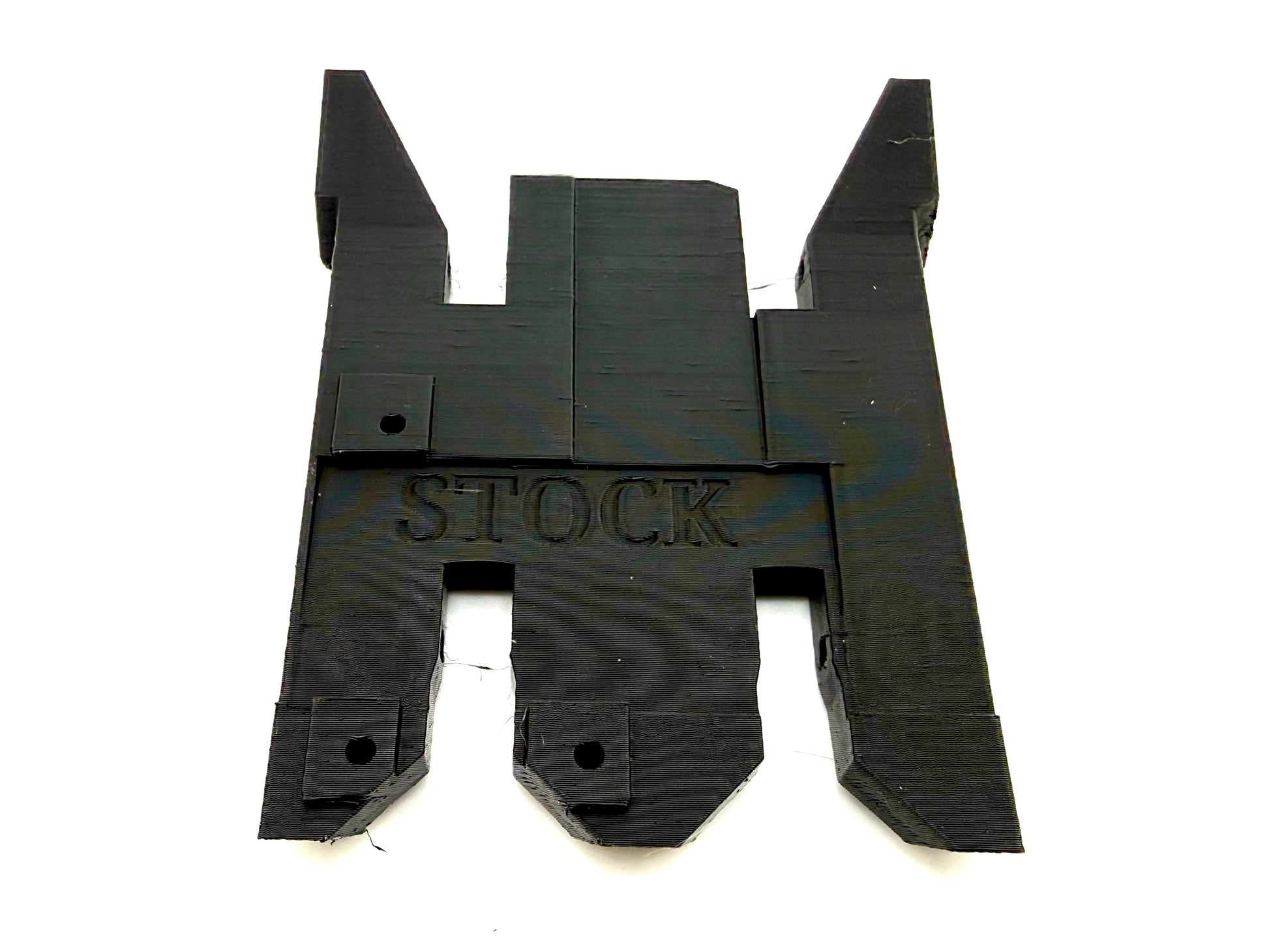

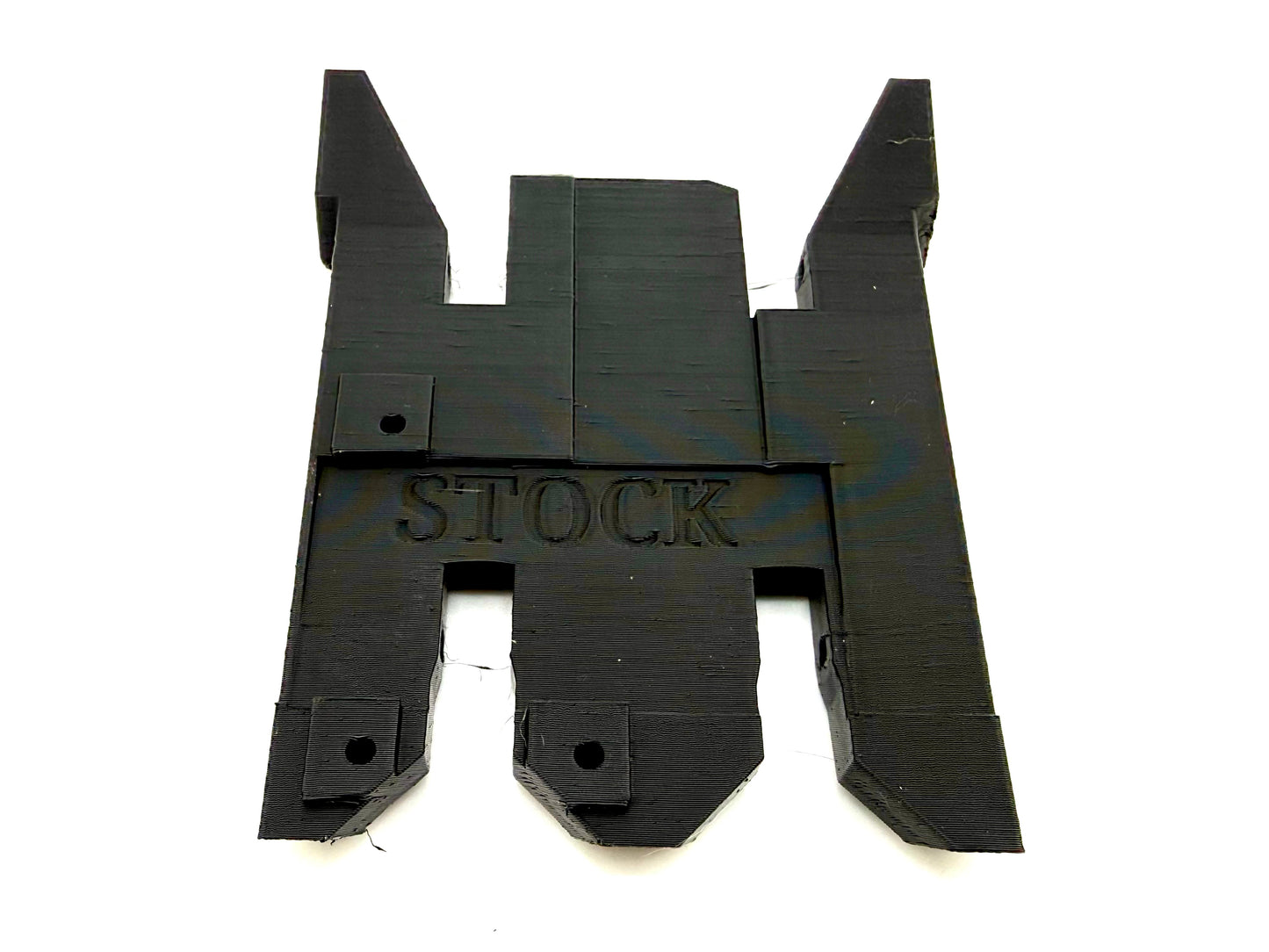

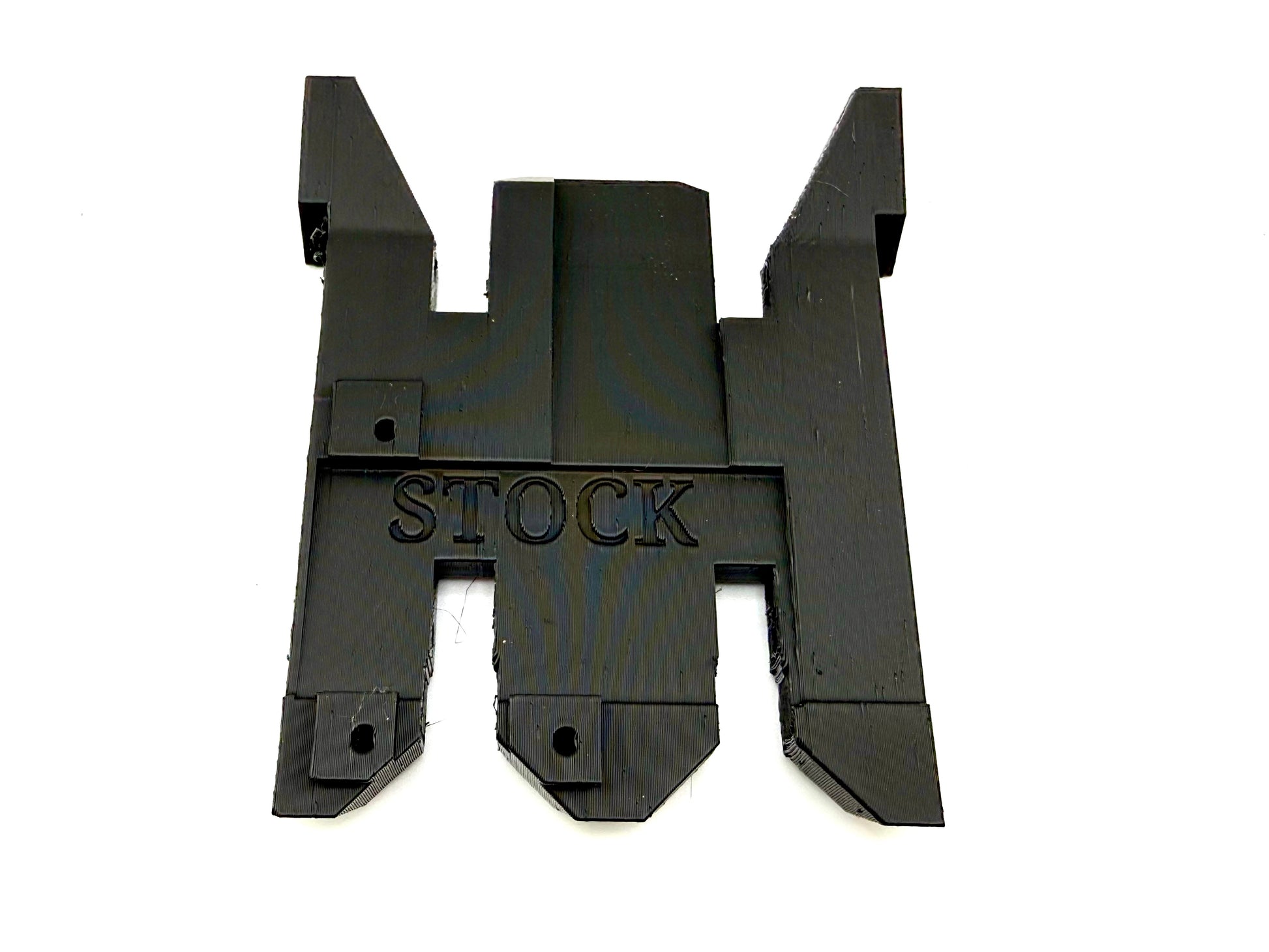

Stock Transmission, Front DS 84mm Rear DS 160mm

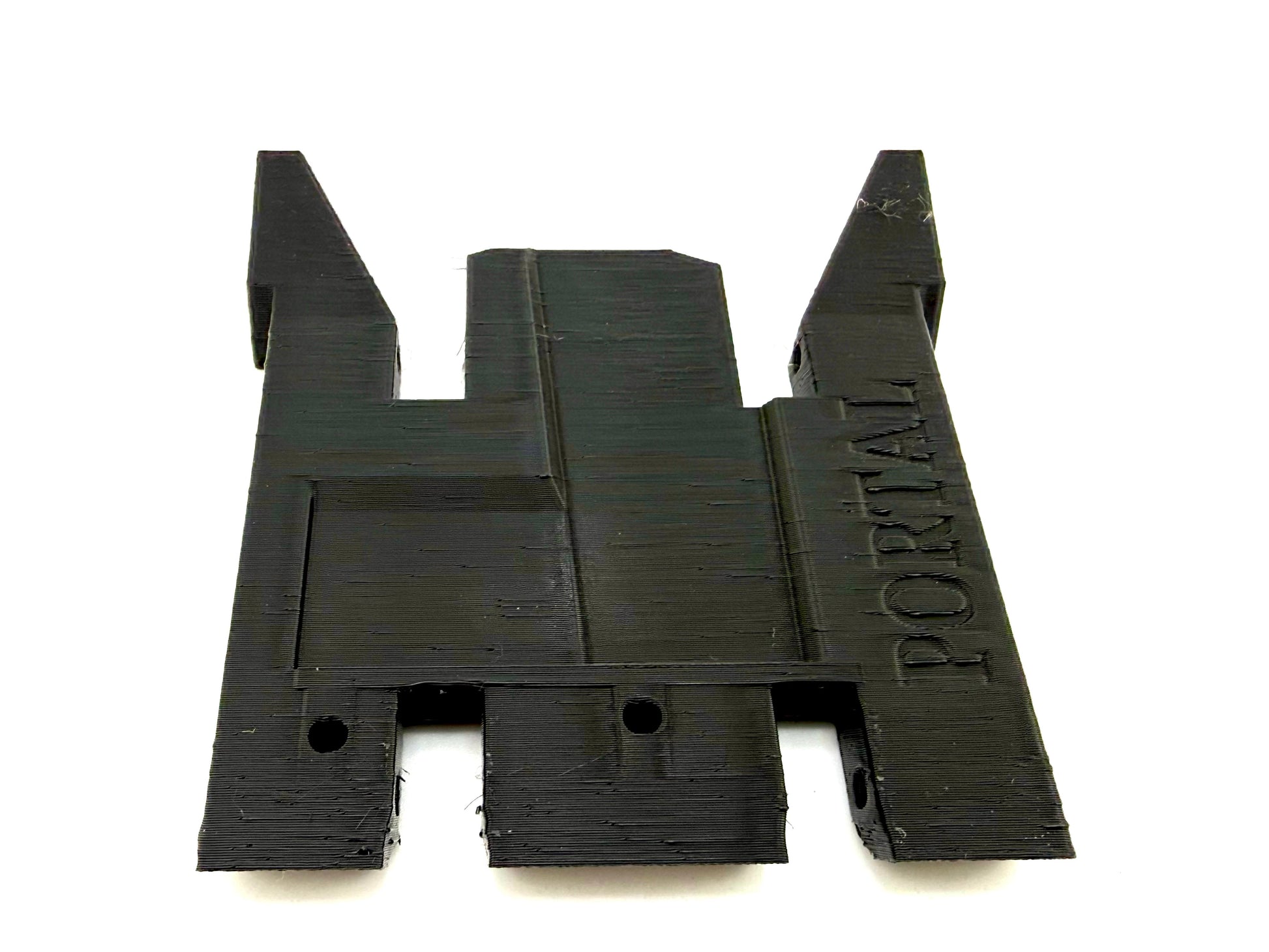

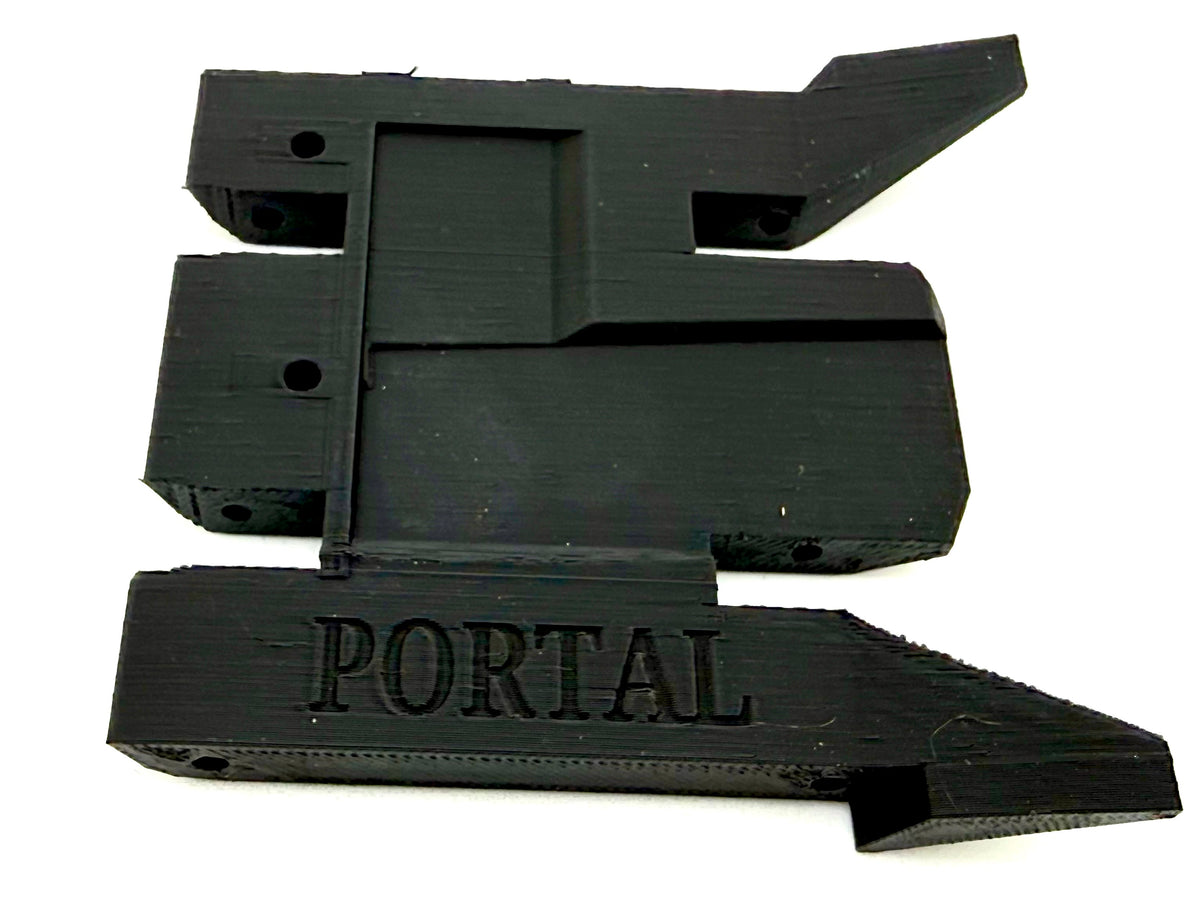

Dlux Portal Transmission Front DS 84mm Rear DS 158mm

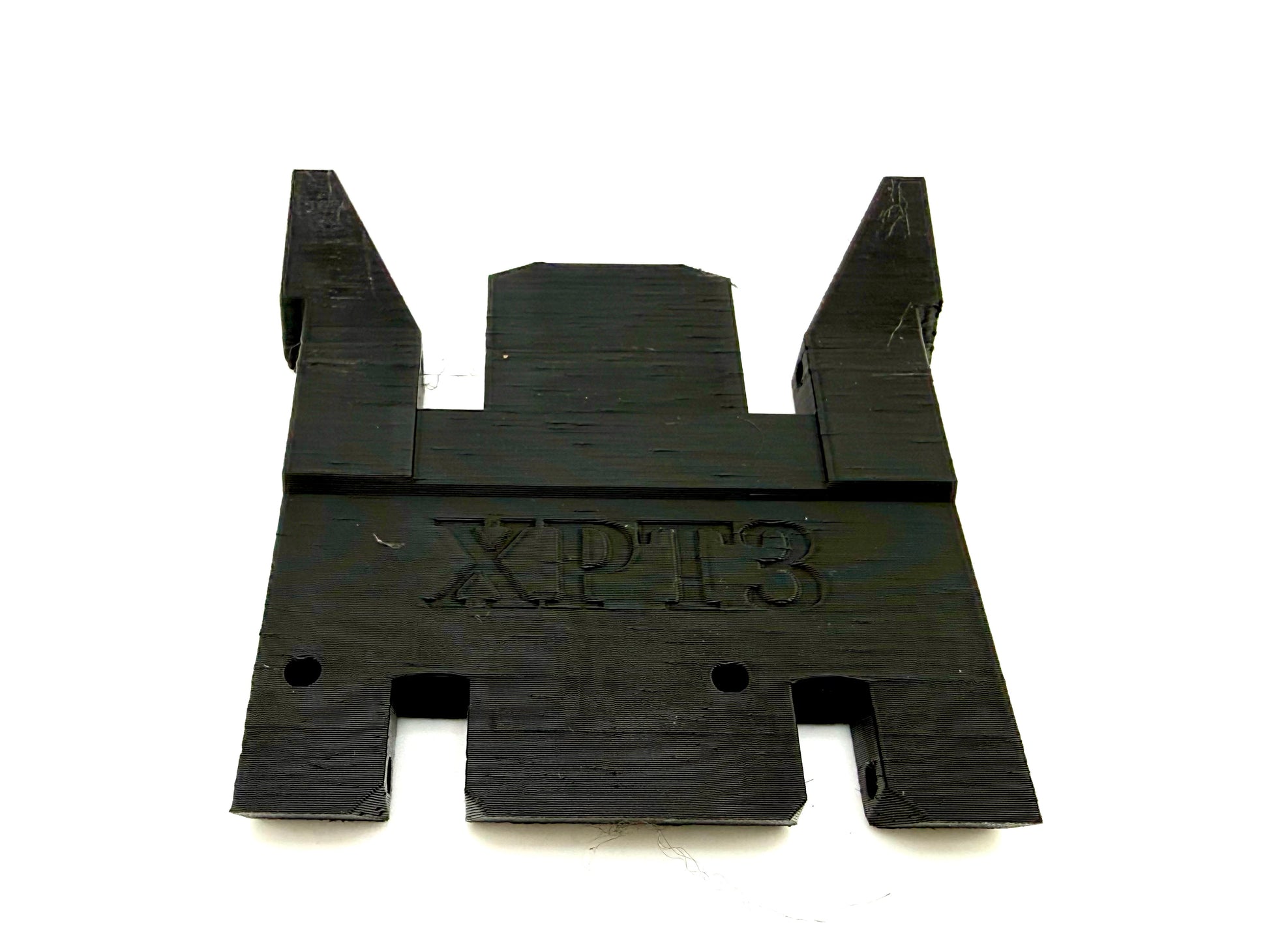

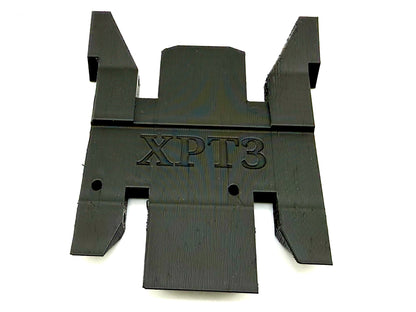

Reefs XPT3 Transmission Front DS 83mm Rear DS 158mm
