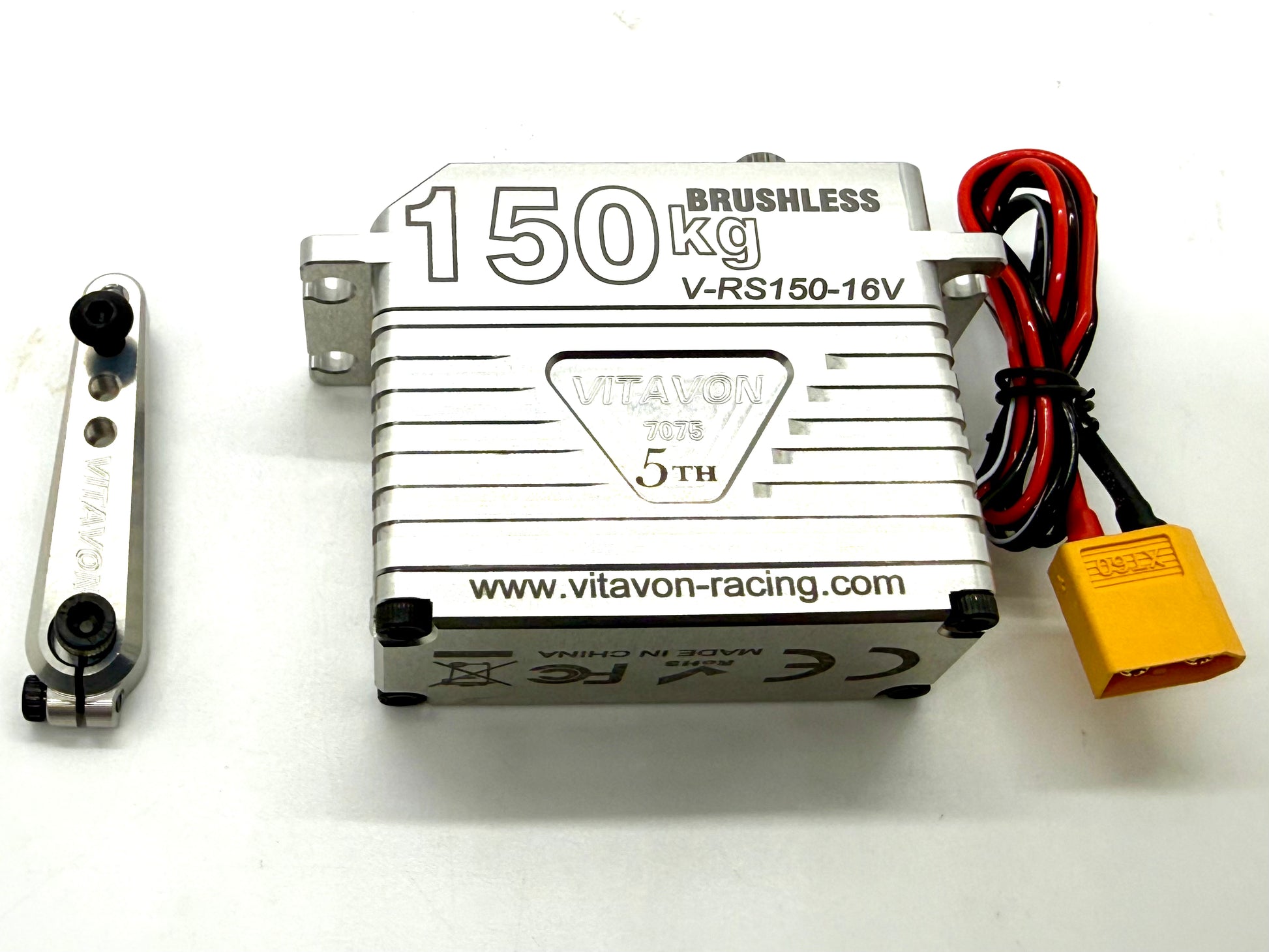

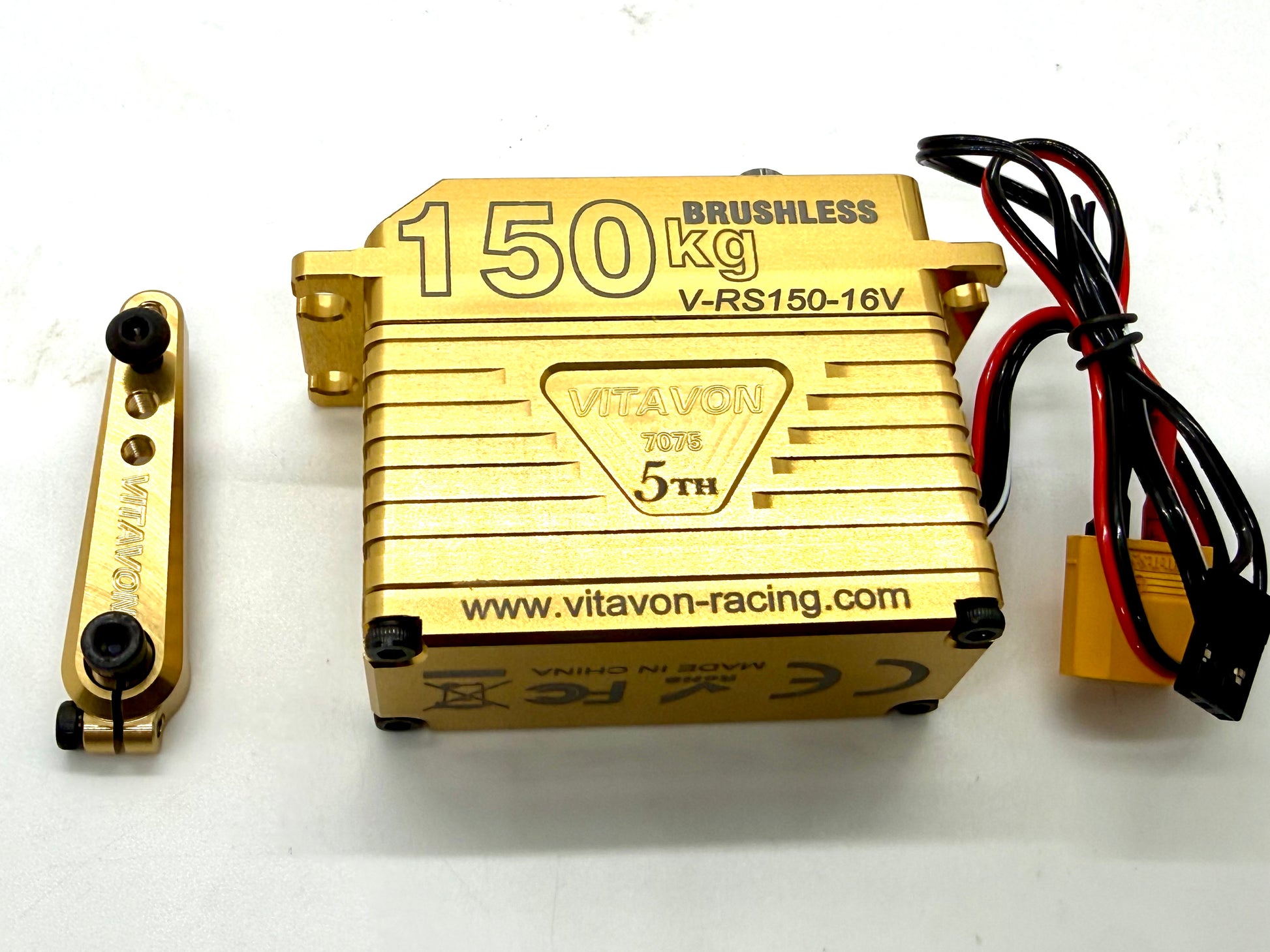

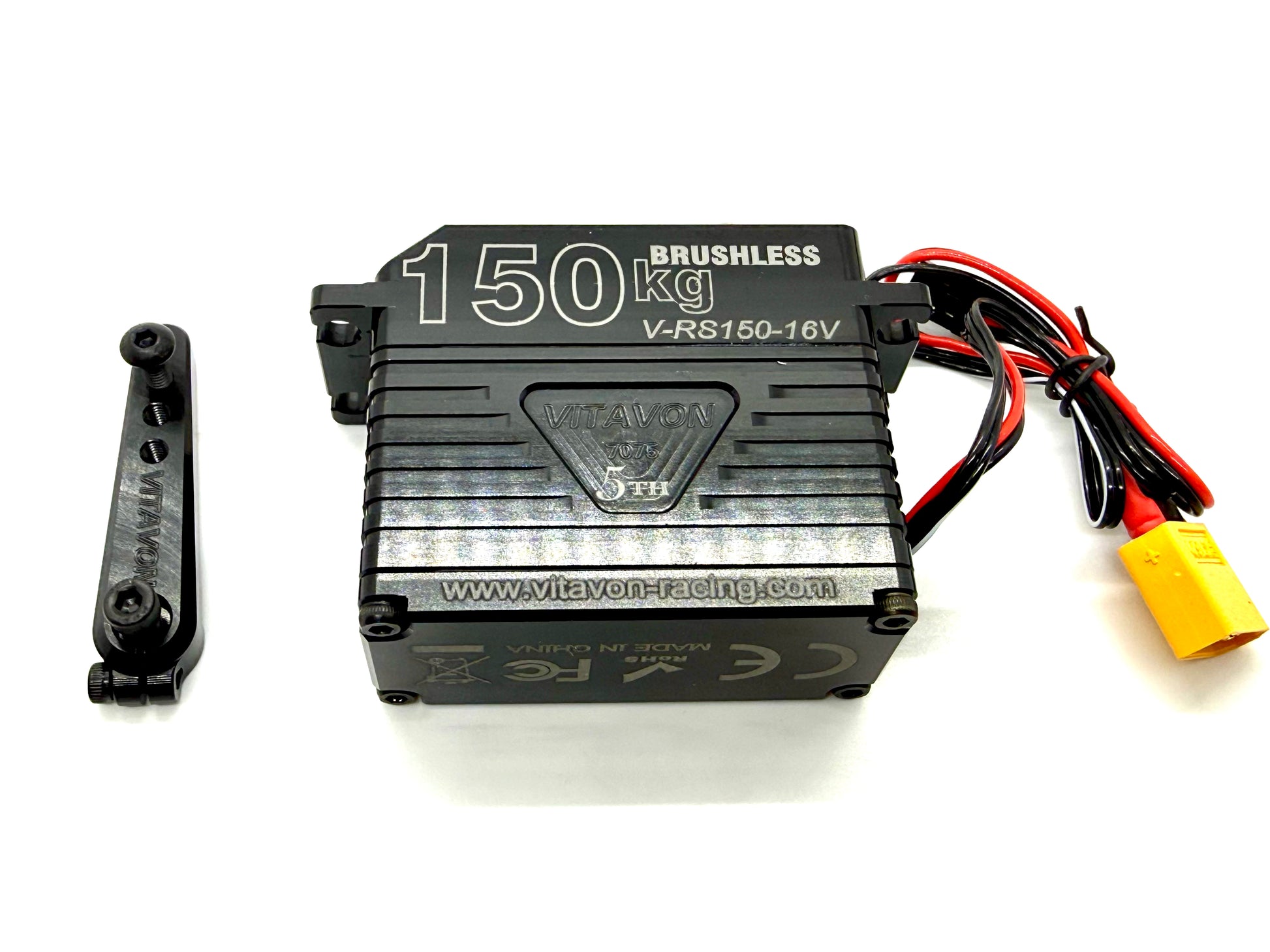

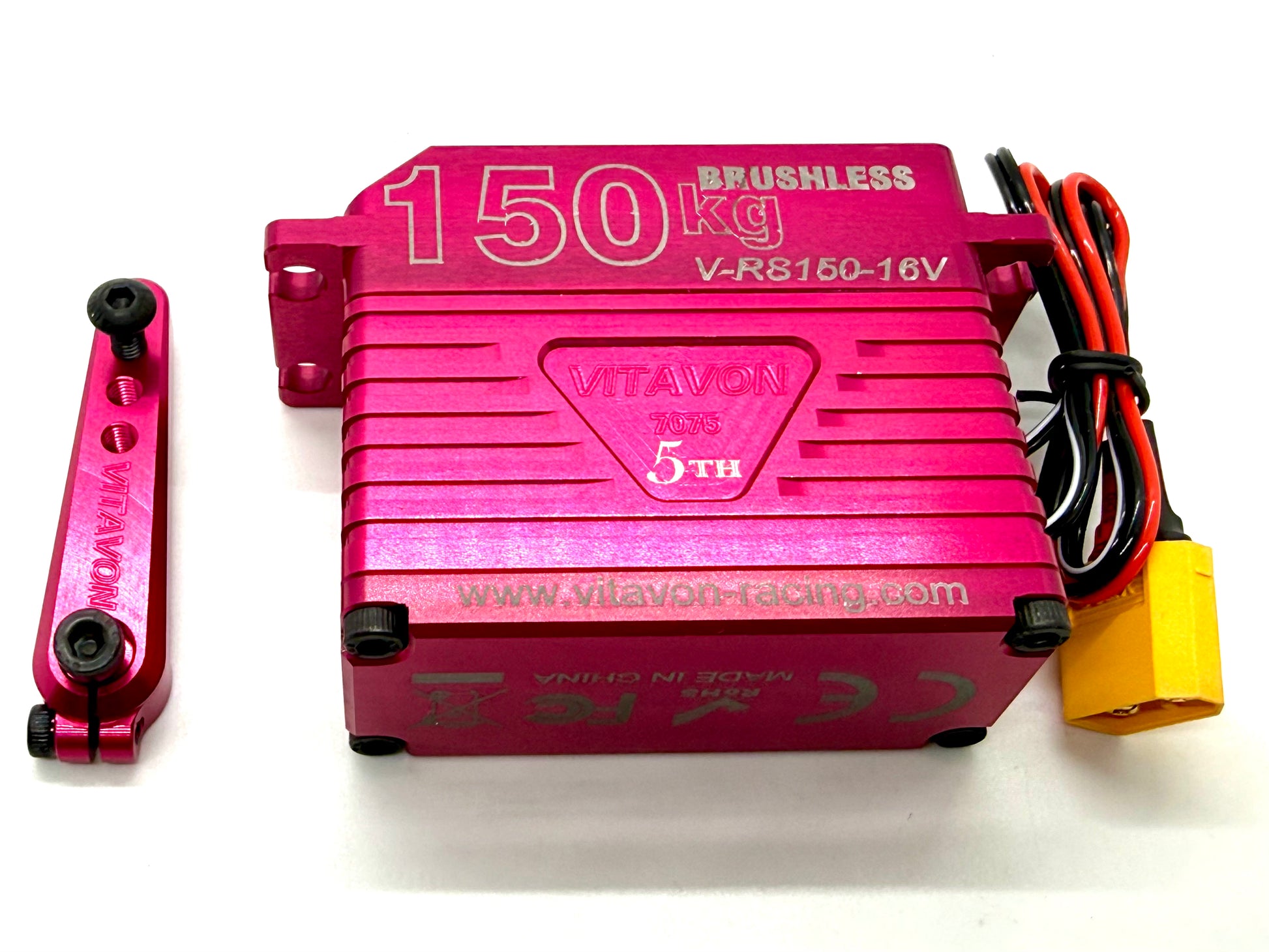

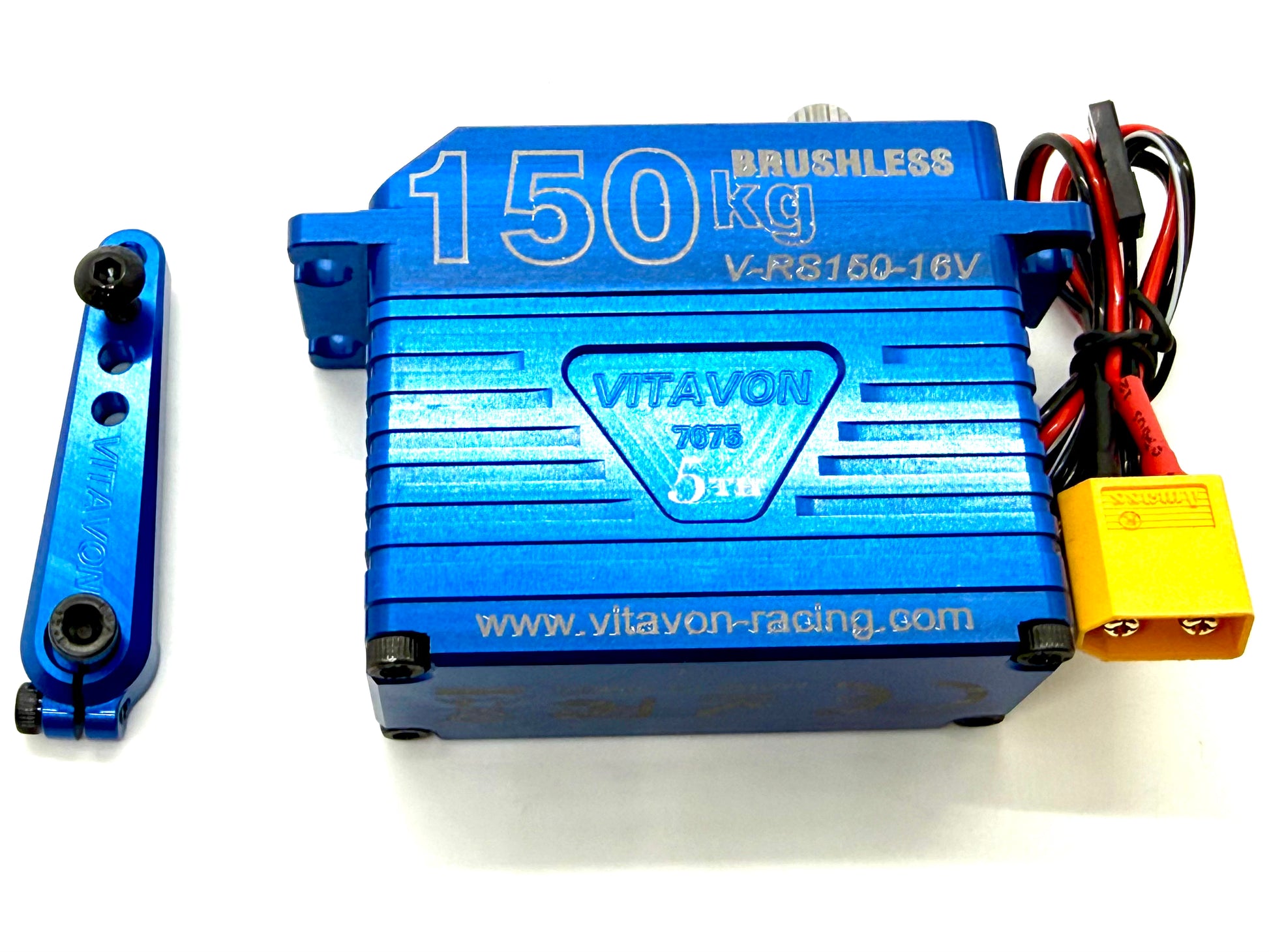

VITAVON V-RS150-16V 150KG SERVO FOR 1/5 VEHICLES

The servo housing is made of 7075 aluminum alloy, replacing the 6061 aluminum alloy used in the G1 servo for improved durability and strength.

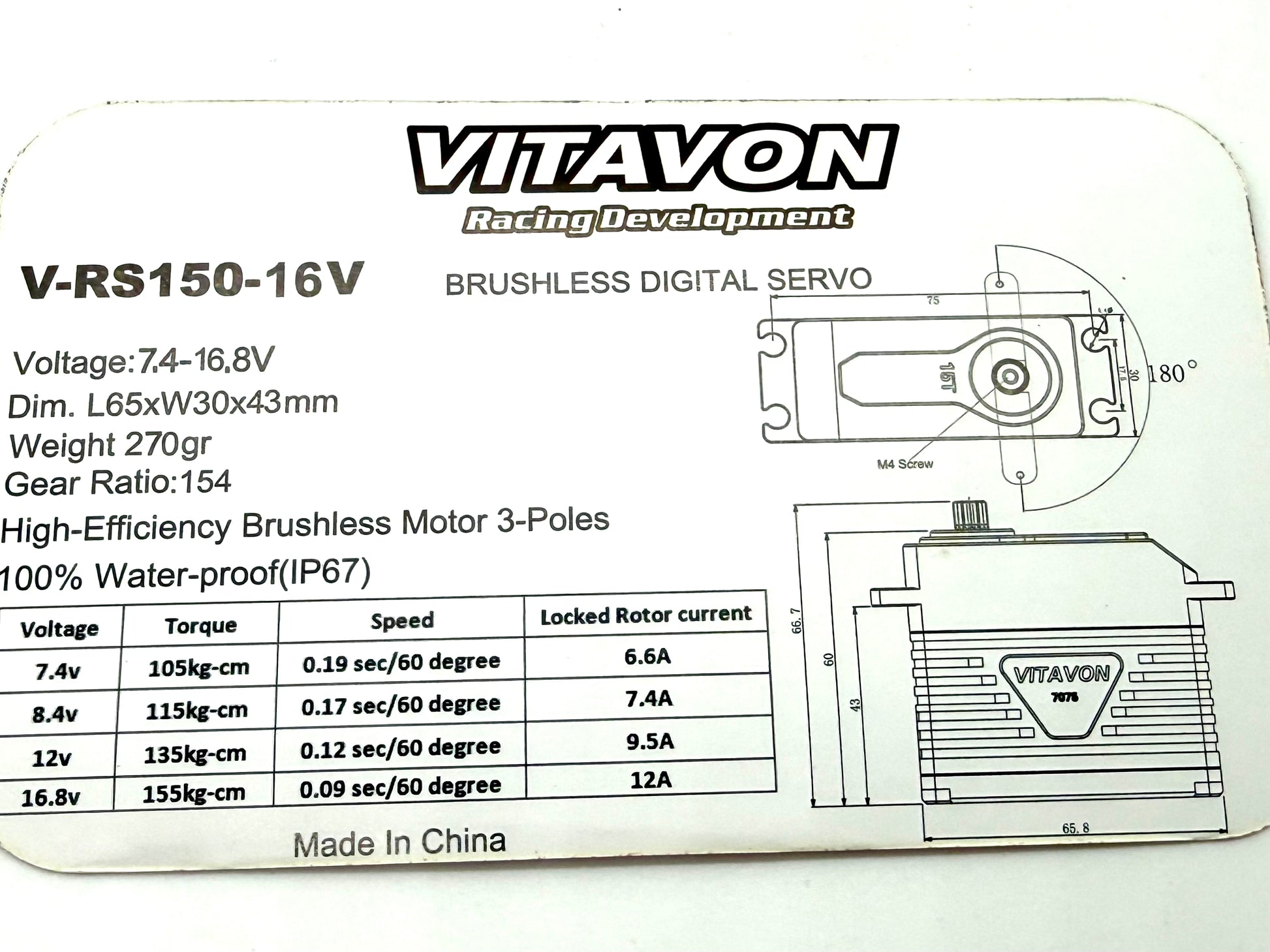

Specifications:

Scale: 1:5

Voltage Range:7.4V – 16.8V

Motor Type: Brushless

Output Shaft: 15 Tooth

Gears: Stainless steel

Gear Ratio:154

Weight: 270g

Dimensions: 2.56×1.18×1.69in (65x30x43mm)

Height (Base to Mount): 43mm

Voltage                   Torque                               Speed                               Locked rotor current
7.4v                        105 kg-cm                0.19 sec/60 degree                      6.6A
8.4V                       115 kg-cm                 0.17sec/60degree                        7.4A
12V                        135kg-cm                 0.12sec/60degree                        9.5A

16.8V                      155kg-cm                 0.09sec/60degree                        12A

Includes:

Brushless Servo+15T servo horn
