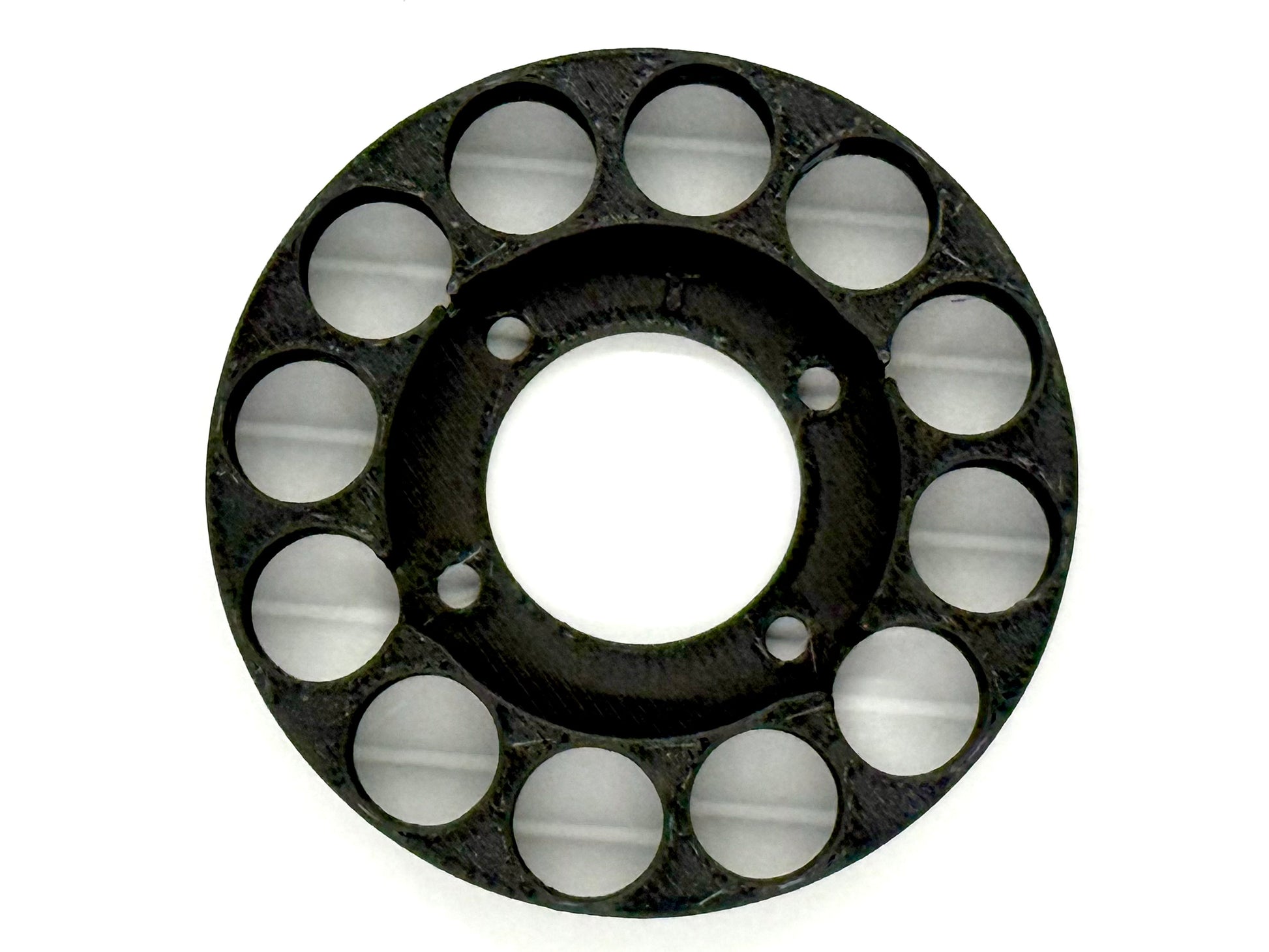

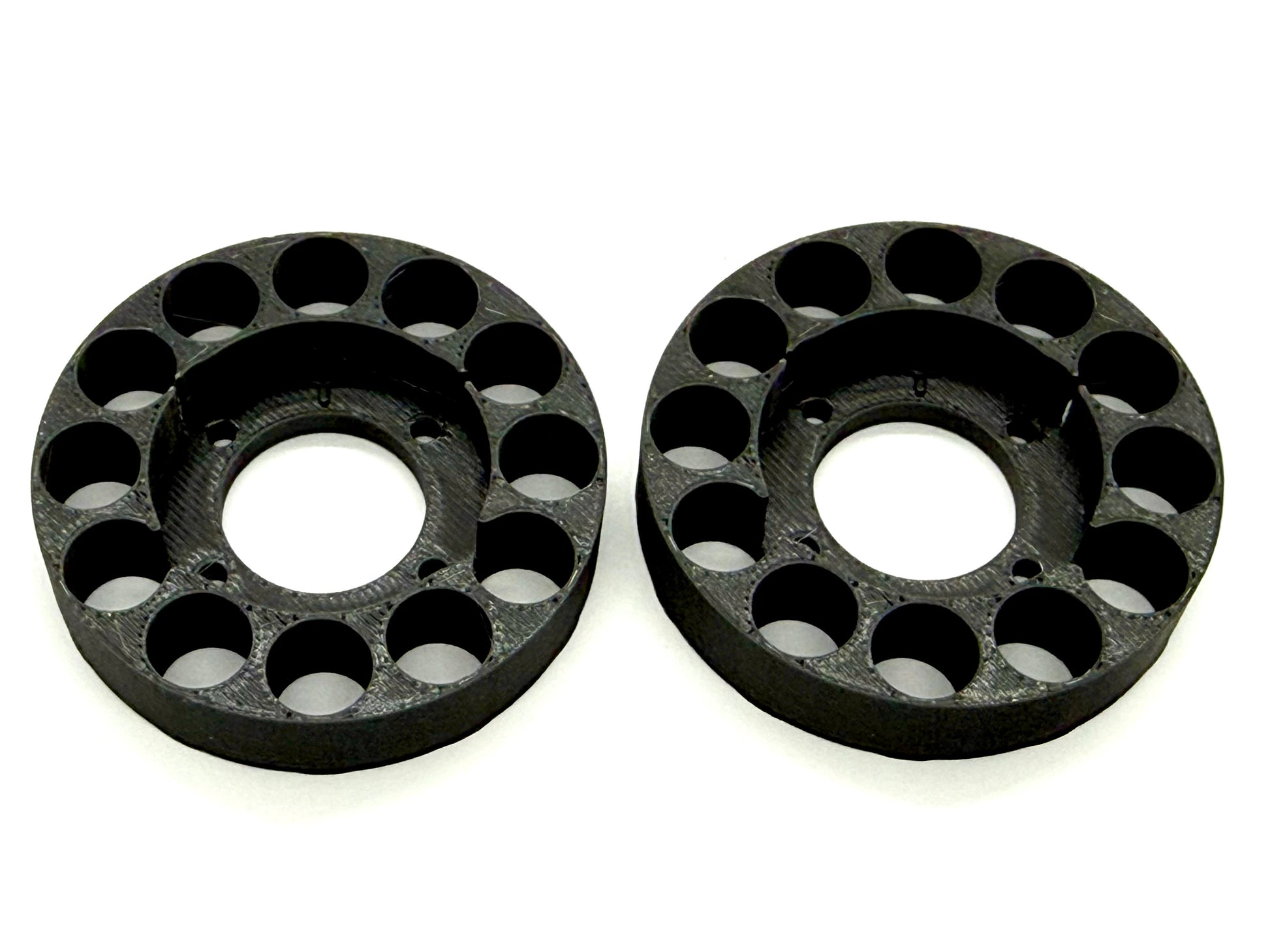

Weight Hanger for REEFS 199 Front axle with AMAZON Carbon 2.2 Wheel ONLY

This hanger requires the AMAZON Carbon 2.2 beadlock wheel, it DOES NOT WORK WITH ANY 1.9 WHEEL or any other 2.2 beadlock wheel.

This Hanger has a 54.4mm diameter

You WILL need a wider set of wheel hexes in front only to clear 18mm here on Amazon https://amzn.to/49vbmpr

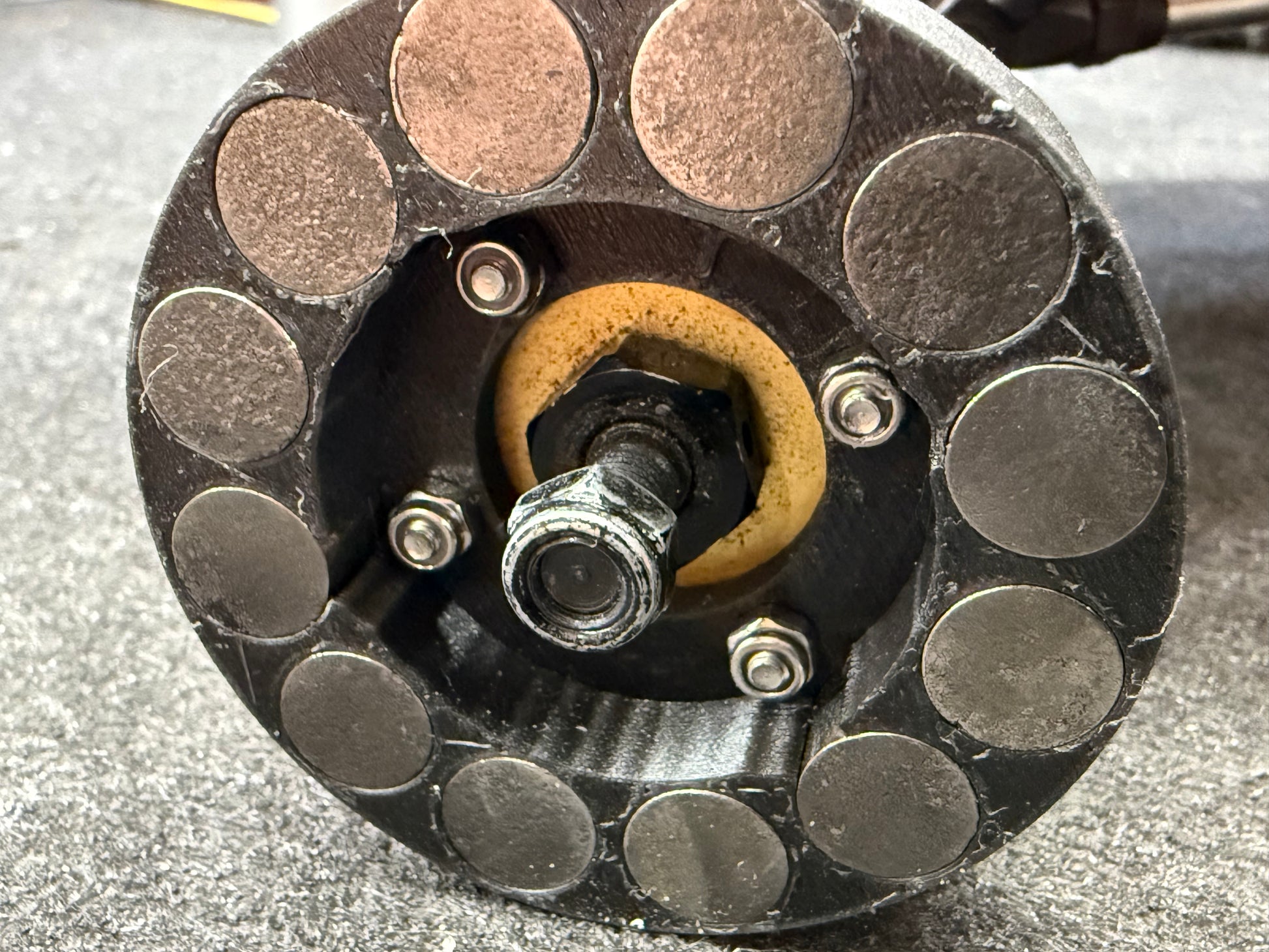

This hanger can be filled with slugs as desired, I do not have slugs and no slugs are provided, they can be found here at DLUXFAB https://dluxfab.com/products/Tungsten-Slugs-for-Loaded-Dice-Weight-Holders-p102051384

Slug size needed are  3/8" x 7/16" long NOT INCLUDED

These can weigh as much as 6oz each with the tungsten weights from DLUX

You can also use Brass in that size as its much cheaper but not as heavy.

this includes the PRINTED parts and 8 2.5x16mm bolts and 8 2.5mm nylock nuts

Tip: if you are tightening the nuts and feel it get easy at the end, the bolt is loose, tighten the bolt more and then secure the nut. Also only 2 bolts/nuts are required per side. There is a TOP due to bolt pattern and there is a T in the printed part, thats the Top.
