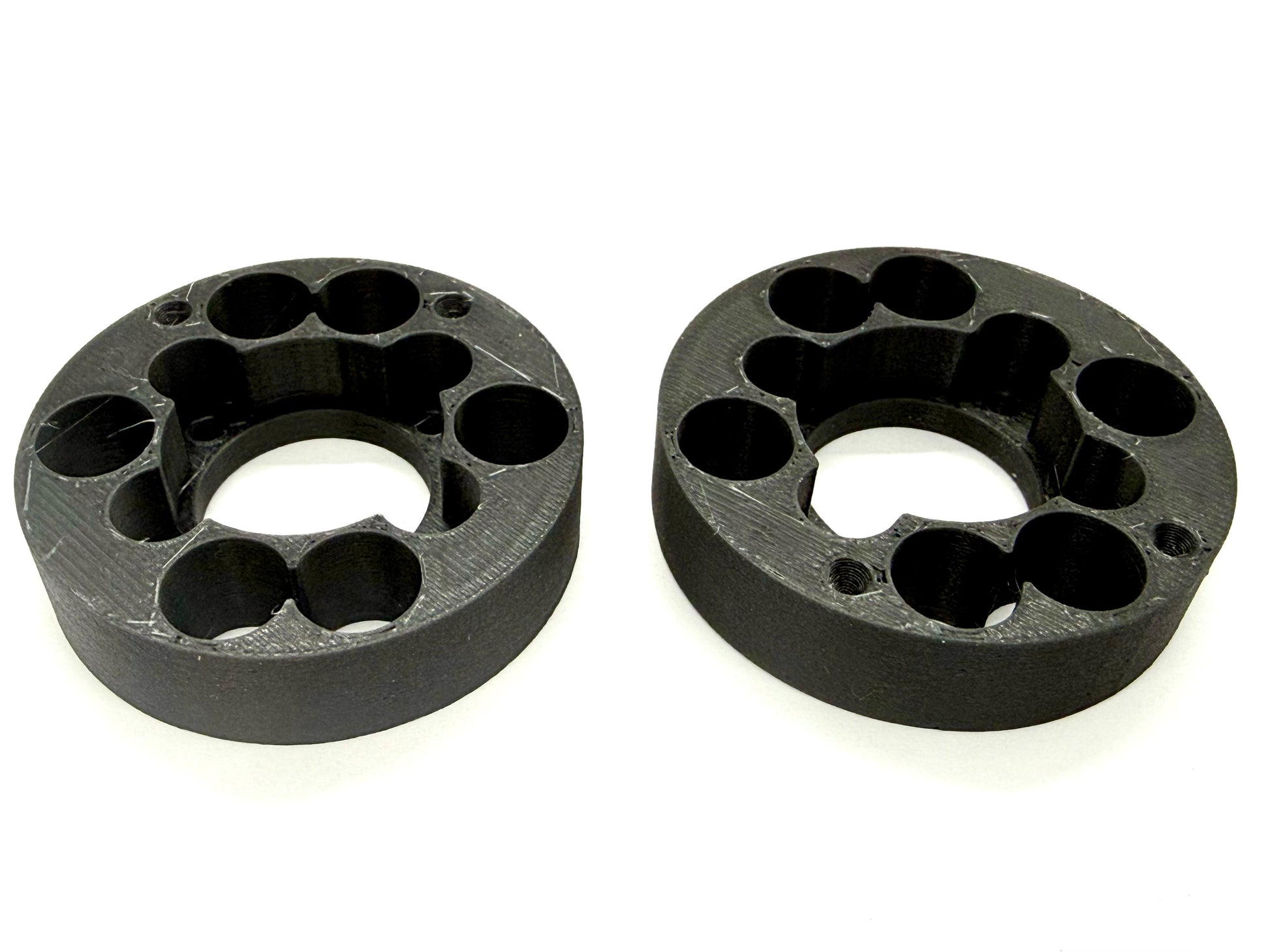

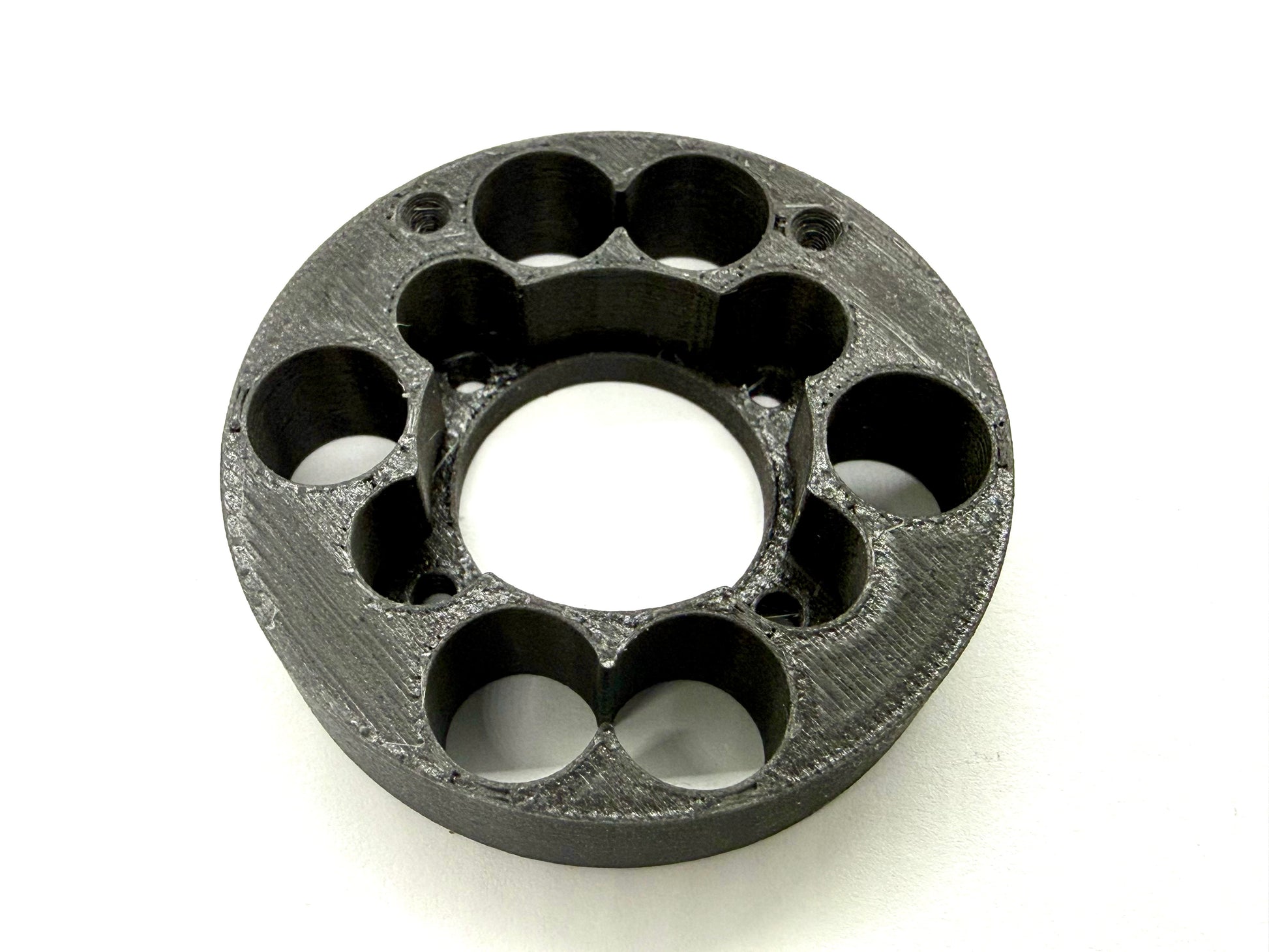

Weight Hanger for REEFS 199 Front axle with 1.9 beadlock wheelS

This hanger requires a high clearance 1.9 beadlock wheel, this fits the REEF RC 1.9 beadlocks JConcepts 2” beadlocks as well as the AMAZON 1.9 Carbon beadlock wheels.

amazon Carbon beadlocks https://exocagedrc.com/search?q=1.9+carbon+beadlock+wheels&_pos=1&_psq=1.9&_ss=e&_v=1.0

Reefs RC Beadlock wheels https://reefsrc.com/search?q=1.9+beadlock&options%5Bprefix%5D=last

JConcepts 2” Beadlock https://jconcepts.net/bulls-eye--20-crawler-wheel-set-fits-19-tire

NOTE: Reefs hubs use a 2.5mm bolt, to use normal hubs you will need to drill out the holes in the wheel and then the hub listed will work fine with new M3x6 bolts, 3.1mm drill bits here https://amzn.to/4vtdwOT

This Hanger has a 45mm diameter

You WILL need a wider set of wheel hexes in front only to clear 18mm here on Amazon https://amzn.to/49vbmpr

This hanger can be filled with slugs as desired, I do not have slugs and no slugs are provided, they can be found here at DLUXFAB https://dluxfab.com/products/Tungsten-Slugs-for-Loaded-Dice-Weight-Holders-p102051384

Slug size needed are  3/8" x 7/16" long NOT INCLUDED

These can weigh as much as 3oz each with the Tungsten slugs from DLUX

You can also use Brass in that size as its much cheaper but not as heavy.

this includes the PRINTED parts and 8 2.5x16mm bolts and 8 2.5mm nylock nuts

Tip: if you are tightening the nuts and feel it get easy at the end, the bolt is loose, tighten the bolt more and then secure the nut. Also only 2 bolts/nuts are required per side. There is a TOP due to bolt pattern and there is a T in the printed part, thats the Top.
